## **Overmolding Technology: Process, Materials, Design, and Applications**
---
### 1. What Is Overmolding?
Overmolding is a manufacturing process in which one material is molded over a substrate (the base part) using two‑component injection molding or a two‑step injection process. The most common example is covering a rigid plastic handle with a soft TPE (thermoplastic elastomer) layer to improve grip and comfort.
The core value of overmolding lies in **property combination** – by fusing different materials at the interface, parts gain multiple functions such as soft touch, slip resistance, shock absorption, sealing, and waterproofing. It breaks the limitations of single‑material parts and seamlessly integrates rigid structures with flexible components.
From an equipment perspective, overmolding can be divided into two main types:
| Type | Equipment | Molds | Characteristics |
| :--- | :--- | :--- | :--- |
| **True Two‑Shot (Multi‑Component)** | Two‑shot injection molding machine | Two molds sharing the same core | Both shots are completed in one machine cycle with high automation and efficiency |
| **Pick‑n‑Place / Insert Overmolding (Fake Two‑Shot)** | Standard injection molding machine | Two separate molds | The first‑shot part is removed and placed into a second mold for the second shot; lower equipment investment |
In true two‑shot molding, two different plastics are injected in sequence on the same machine, but the part is ejected only once. In pick‑n‑place, the two steps are done on separate machines, and the substrate is manually or robotically transferred to a second mold.
---
### 2. Main Overmolding Process Routes
#### 2.1 Two‑Shot (Multi‑Shot) Molding
The substrate is molded first, and immediately afterward, the overmold material is injected over it within the same machine – often with a rotating or sliding core. Typical methods include:
- **Transfer overmolding**: A robot picks the substrate from the first cavity and places it into a larger second cavity.
- **Rotary overmolding**: The mold rotates from one injection station to another.
- **Core‑back overmolding**: A sliding core retracts after the first shot, creating space for the second shot.
Two‑shot molding is highly automated and well‑suited for high‑volume production (typically 10,000+ parts, often 100,000+).
#### 2.2 Pick‑n‑Place Molding
Two independent molds are used. The substrates are produced in bulk in the first mold, cooled, and then manually placed into a second, larger mold for the overmold layer. This method is simpler and has lower tooling costs, making it ideal for small batches or parts with complex geometries.
#### 2.3 Key Process Parameters
Whichever route you choose, the following parameters must be tightly controlled:
- **Temperature profile**: Rigid plastic zone – 200–280 °C; TPE zone – 160–220 °C, ensuring sufficient interfacial melting without degradation.
- **Pressure strategy**: High pressure (60–100 MPa) for the rigid substrate to ensure density; lower pressure (30–60 MPa) for the TPE to avoid substrate deformation.
- **Substrate pre‑treatment**: Remove oils and mold‑release agents; ultrasonic cleaning and plasma activation may be applied for critical bonds.
---
### 3. Material Selection and Bonding Mechanisms
#### 3.1 Common Material Combinations
The overmold layer is typically a softer material. Common pairings include:
| Substrate | Overmold Material | Typical Application |
| :--- | :--- | :--- |
| ABS, PC, PC/ABS, PA (Nylon) | TPE, TPU | Handles, grips, seals |

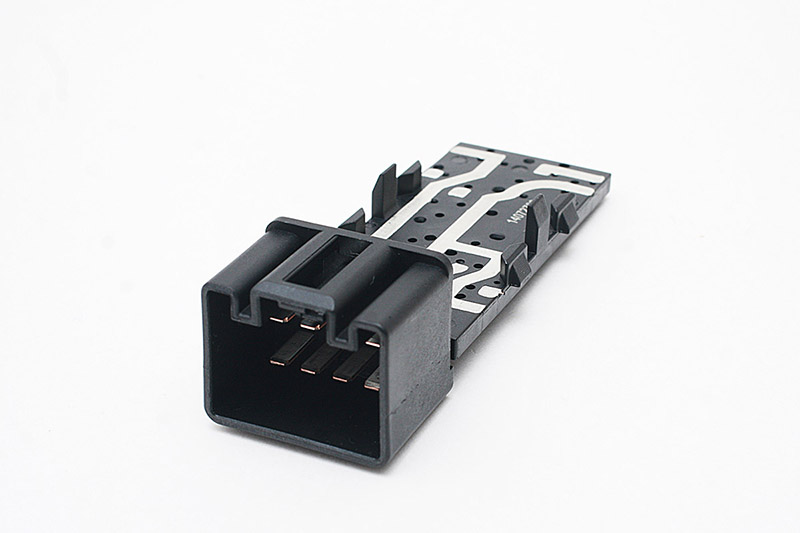

| Metal inserts | Plastic / TPE | Threaded inserts, electrical terminals |
| Engineering plastics (PBT, etc.) | Liquid Silicone Rubber (LSR) | Sealing components, medical devices |
Popular substrate materials include ABS, polycarbonate (PC), polypropylene (PP), nylon (PA), and PBT. Overmold materials often include TPE, TPU, and LSR.
#### 3.2 Bonding Mechanisms
The bond strength between the substrate and overmold depends on how they adhere:
**Chemical bonding**: The overmold and substrate react at the molecular level, forming a permanent bond. Key requirements are:
- **Surface energy matching**: High‑surface‑energy substrates (e.g., nylon, PC) allow the overmold to spread and adhere well; low‑energy materials (PP, PE) cause beading and poor adhesion.
- **Molecular chain compatibility**: When the polymers are chemically similar, their chains can interpenetrate and entangle at the interface.
- **Melt temperature interaction**: Sufficient heat softens the substrate surface slightly, promoting molecular diffusion.
**Mechanical interlocking**: Physical features such as undercuts, grooves, and ribs are designed into the substrate so that the overmold material locks onto them mechanically. Even if materials are chemically incompatible, a strong bond can be achieved through mechanical design.
**True vs. pseudo overmolding**: True overmolding relies on molecular chain interpenetration and chemical bonds, with peel strengths >5 N/mm². Pseudo overmolding depends on mechanical interlocking, giving peel strengths <2 N/mm².
---
### 4. Design for Manufacturability (DFM) Guidelines
Successful overmolding starts with smart design. Key considerations:
#### 4.1 Uniform Wall Thickness
Both the substrate and the overmold should have as uniform wall thickness as possible to ensure optimal cycle times and bond quality. Thickness consistency directly affects structural integrity and surface finish.
#### 4.2 Mechanical Locking Features
Include **undercuts, ribs, grooves, or recesses** to enhance mechanical interlocking. Typical designs include annular grooves (0.5–1 mm deep) and dovetail slots.
#### 4.3 Shrinkage and Tolerance Control
Different materials have different shrinkage rates. The difference between substrate and overmold must be accounted for in the design. Mold machining tolerances are typically ±0.003 inch (0.08 mm); for LSR overmolding, tolerances are usually somewhat looser.
#### 4.4 Gate and Runner Design
If the gate is too small (<0.8 mm), surface flow marks are likely. It is advisable to enlarge gates to 1.2–1.5 mm. Runner layout and gate location are critical for balanced filling.
#### 4.5 Sealing Design for Two‑Shot Molding
In two‑shot molding, the first‑shot part can be made slightly larger so that when the second shot is injected, it presses tightly against the opposing cavity wall, achieving a good seal. Also, consider whether the plastic flow during the second shot will erode or damage the already‑formed first‑shot section.
---
### 5. Typical Application Fields
Overmolding is widely used across many industries:
| Industry | Typical Products | Key Benefits |
| :--- | :--- | :--- |
| **Automotive** | Key fobs, interior buttons, sensor seals, connector boots | Sealing, vibration damping, ergonomics |
| **Medical** | Surgical instrument handles, respiratory masks, valve components, silicone seals | Anti‑slip, antimicrobial, comfortable grip |
| **Consumer Electronics** | Device protective sleeves, connectors, waterproof housings | Waterproofing, dust protection, aesthetics |
| **Power Tools** | Tool handles, wrenches, screwdriver grips | Shock absorption, comfortable hold |
| **Daily Goods** | Toothbrush handles, insulated cups, toy parts | Soft touch, decorative finish |
Liquid Silicone Rubber (LSR) overmolding is especially prominent in these areas, with mold precision reaching ±0.003 mm. Micro‑LSR overmolding can inject milligram‑level quantities of LSR into a mold, forming chemical bonds and micro‑mechanical interlocking with metal or engineering plastic substrates for micron‑level sealing structures.
---
### 6. Common Defects and Process Improvements
| Defect | Main Causes | Improvement Measures |
| :--- | :--- | :--- |
| **Delamination / Poor Adhesion** | Substrate surface energy too low (<38 mN/m), insufficient melt temperature, too‑rapid cooling | Corona treatment (40‑45 dyne), extend holding time to 5‑8 s, mold temperature 60‑80 °C |
| **Surface Flow Marks** | Overmold viscosity too high, gate too small (<0.8 mm), injection speed fluctuations | Add flow aids, enlarge gate to 1.2‑1.5 mm, use valve gates |
| **Stress Whitening** | Large difference in thermal expansion, uneven ejection force | Choose TPE with low shrinkage (<1.5%), optimize ejector pin layout, add vents (0.02‑0.03 mm) |
Additionally, nylon (PA) substrates should be pre‑dried at 100‑140 °C for 2‑4 hours to remove crystalline moisture and increase surface polarity. TPE with moisture content >0.1% should be dried at 80‑90 °C for 2‑3 hours to avoid interfacial voids and surface wrinkles.
---
### 7. Conclusion
Overmolding is a state‑of‑the‑art multi‑material molding technology that combines the strengths of different materials in a single part. It is reshaping product design in automotive, medical, consumer electronics, and many other fields. Successful overmolding depends on the **synergy of the correct process route, compatible material pairing, meticulous mold design, and strict control of process parameters**.
For manufacturers, mastering the key technical aspects – especially bonding mechanisms and design principles – is essential to fully leverage this process and gain a competitive edge in product quality and performance.
---
